Student Microscope

If you are wondering which microscope is used for students? or which microscope is used most often with students?, then the answer is a student microscope which is also known as the compound microscope. The purpose of these microscopes is to view the slides present at different levels of the magnification. Compound microscopes are the most widely used in schools since they offer magnifications ranging from 4x to 400x and allow for the examination of individual cells. We sell three types of student microscopes: microscopes for elementary, middle, and high schools, as well as university and medical schools.

Traveling Microscope (VM- 1)

MOQ : 1 Unit

Coarse Adjustment Range
Approx. 15 mm via rack and pinion mechanism.

Condenser
N/A (no condenser in this model).

Dimensions
Approx. 350 mm (L) × 170 mm (W) × 190 mm (H).

Drawtube
Other, Single drawtube, smooth focusing movement.

Eyepiece Tube
Single tube, vertical mounting.

Eyepieces
One Huygenian 10X achromatic eyepiece.

Features
Precision measuring screws on both axes, lock screw for measurements, smooth gliding carriage, rugged metallic base, easy rotation and locking mechanism.

Fine Adjustment Range
Micrometer screw movement offering 0.01 mm sensitivity.

Focal Distance
Adjustable via fine and coarse focusing knobs.

Focus Range
Up to 50 mm (approximate travel of focusing mechanism).

Focus System
Coarse and fine rack & pinion arrangement.

Frame Rate
N/A (visual instrument).

Illumination
Ambient (external light source required).

Image Format
N/A (visual observation only).

Interface
Manual Operation.

Interpupillary Distance
Fixed, suitable for single observer.

Light Source
Dependent on ambient or external light.

Magnification
10X (eyepiece) × 15X (objective) = 150X total magnification approx.

Objective Achromatic
Achromatic objective, 15X.

Resolution
0.01 mm (least count).

Sensor
Not applicable (Optical instrument).

Spare Parts
Supplied with one spare eyepiece, dust cover, and calibration scale.

Theory
Other, Traveling Microscope is a precision optical instrument used for measuring small distances with high accuracy, often utilized in laboratories for scientific and industrial applications.

View Head
Monocular, 360° rotatable.

Working Stage
Heavy, ground glass platform with stainless steel scale (horizontal and vertical scales).

Know more

Senior Dissecting Microscope (MD-2)

MOQ : 1 Unit

Coarse Adjustment Range
Provided by large milled focusing knobs on both sides

Condenser
Not included (not required for low power microscopy)

Dimensions
Approx. 190mm x 120mm x 250mm

Drawtube
Other, Upright, monocular drawtube

Eyepiece Tube
Upright monocular tube

Eyepieces
Paired 10x wide field eyepieces supplied

Features
Heavy stable base, sturdy arm, adjustable mirror, suitable for school and laboratory use

Fine Adjustment Range
Not available (coarse focus only)

Focal Distance
Long working distance suitable for dissection

Focus Range
Coarse focusing with rack and pinion mechanism

Focus System
Coarse, rack and pinion focusing system

Frame Rate
Not applicable (optical microscope)

Illumination
Substage plano-concave reflector and adjustable top mirror for incident light

Image Format
Visual (no digital camera or image capture)

Interface
Mechanical stage with stage clips

Interpupillary Distance
Fixed (for monocular observation)

Light Source
Mirror (plano-concave) for reflecting natural/artificial light

Magnification
10x and 20x selectable by interchangeable objectives

Objective Achromatic
2x and 4x (interchangeable objectives)

Resolution
Up to 100x, optical clarity depending on lens quality

Sensor
Not applicable (optical system only)

Spare Parts
Extra eyepiece and stage clips supplied

Theory
Other, Designed for precise dissection and examination of small objects in laboratories and schools.

View Head
Monocular, fixed vertical head

Working Stage
Square, stage with glass/white plate and stage clips

Know more

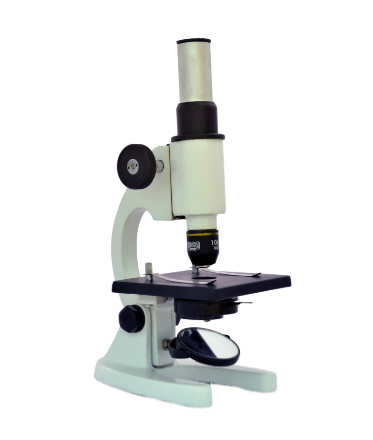

Junior Medical Microscope

Price 1000 - 100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Coarse Adjustment Range
Maximum up to stage movement

Condenser
Fixed condenser with diaphragm

Dimensions
Approx. 30 cm height

Drawtube
Monocular

Eyepiece Tube
Single (Monocular)

Eyepieces
Wide field, typically H10x

Features
Sturdy metallic body, lightweight, anti-rust coating, easy to handle, suitable for field and school laboratory use

Focal Distance
Mechanical adjustment

Focus Range
Coarse focusing mechanism

Focus System
Coarse adjustment knob

Illumination
Inbuilt plano-concave mirror

Image Format
Visual, via eyepiece

Interface
Manual observation

Interpupillary Distance
Fixed

Light Source
Plano-concave mirror (ambient light)

Magnification
100X – 1200X

Objective Achromatic
3 position revolving nosepiece: 10X, 45X, 100X (oil-immersion optional)

Spare Parts
Eyepiece, mirror, objectives

Theory
Other, Designed for basic medical and educational applications, suitable for junior level microscopy.

View Head
Monocular, straight

Working Stage
Square stage with slide clamps

Know more

Laboratory Travelling Microscope

MOQ : 1 Unit

Coarse Adjustment Range
Provided by rack and pinion mechanism for substantial movement of the microscope tube.

Condenser
Not applicable (used for transmitted illumination, not typical in this design).

Dimensions
Approx. 370 mm (L) x 210 mm (W) x 430 mm (H).

Drawtube
Other, Adjustable metallic drawtube for smooth focus movement.

Eyepiece Tube
Straight monocular tube with fine-tuned focusing.

Eyepieces
10x (standard), optional 15x.

Features
Heavy cast iron base, three leveling screws, precise measuring scale, smooth sliding carriage, fine adjustment, anti-reflective optics, robust and stable construction.

Fine Adjustment Range
Micrometer screw adjustment for precise measurement.

Focal Distance
Can be adjusted with rack and pinion focusing mechanism.

Focus Range
Vertical movement typically 150 mm.

Focus System
Rack and pinion coarse focus with screw micrometer fine adjustment.

Frame Rate
Not applicable (no digital/video system).

Illumination
External light source or mirror illumination, natural light compatible.

Image Format
Visual observation, not digital.

Interface
Manual, optical observation.

Interpupillary Distance
Not adjustable (single eyepiece monocular design).

Light Source
Mirror for ambient light; external LED lamp mountable.

Magnification
Up to 15x (combination of 10x eyepiece and 15x objective).

Objective Achromatic
Achromatic objectives 15x/20x, anti-reflective coated optics.

Resolution
Typically up to 0.01 mm using the vernier scale.

Sensor
Not Applicable (optical system only).

Spare Parts
Vernier scale, glass stage plate, mirror, objectives, eyepiece.

Still Image Capture Resolution
Not applicable (optical observation only).

Theory
Other, A Laboratory Travelling Microscope is a precision instrument used for measuring small lengths, thicknesses, and diameters with high accuracy, employing a finely graduated scale and vernier arrangement for linear measurements and fine adjustment.
